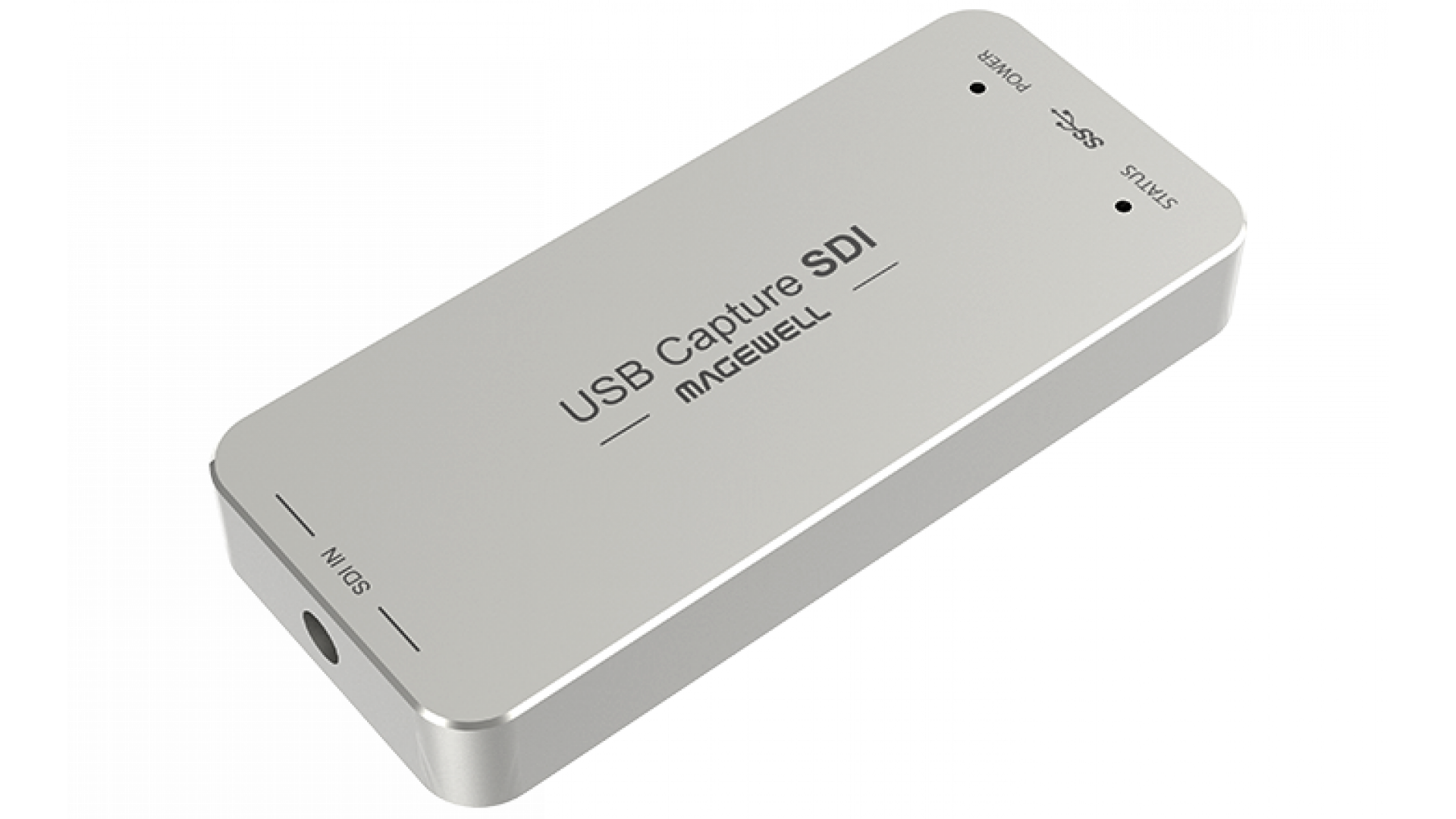

USB Capture SDI Gen 2

Key Features:

Input:

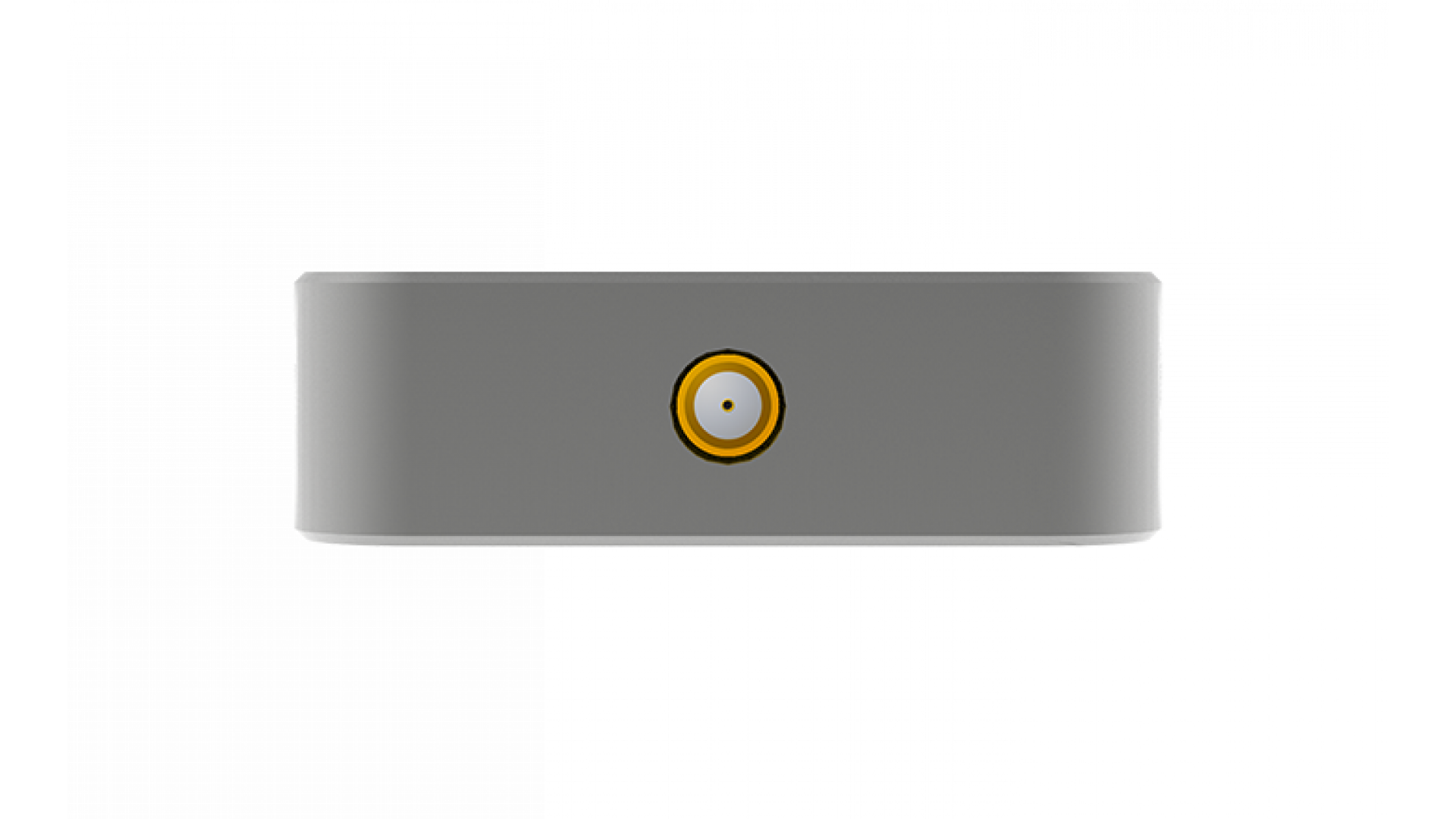

• SDI interface with support for up to 1920x1080 60fps input
• Supports 3G-SDI, HD-SDI, and SD-SDI formats
• Embedded audio support for up to 8-channel, 48KHz, 16-bit audio

Processing:

• High-quality video processing including up/down/cross-scaling, deinterlacing, and color space conversion
• 10-bit video processing engine for accurate color reproduction
• Automatic input detection and configuration

Output:

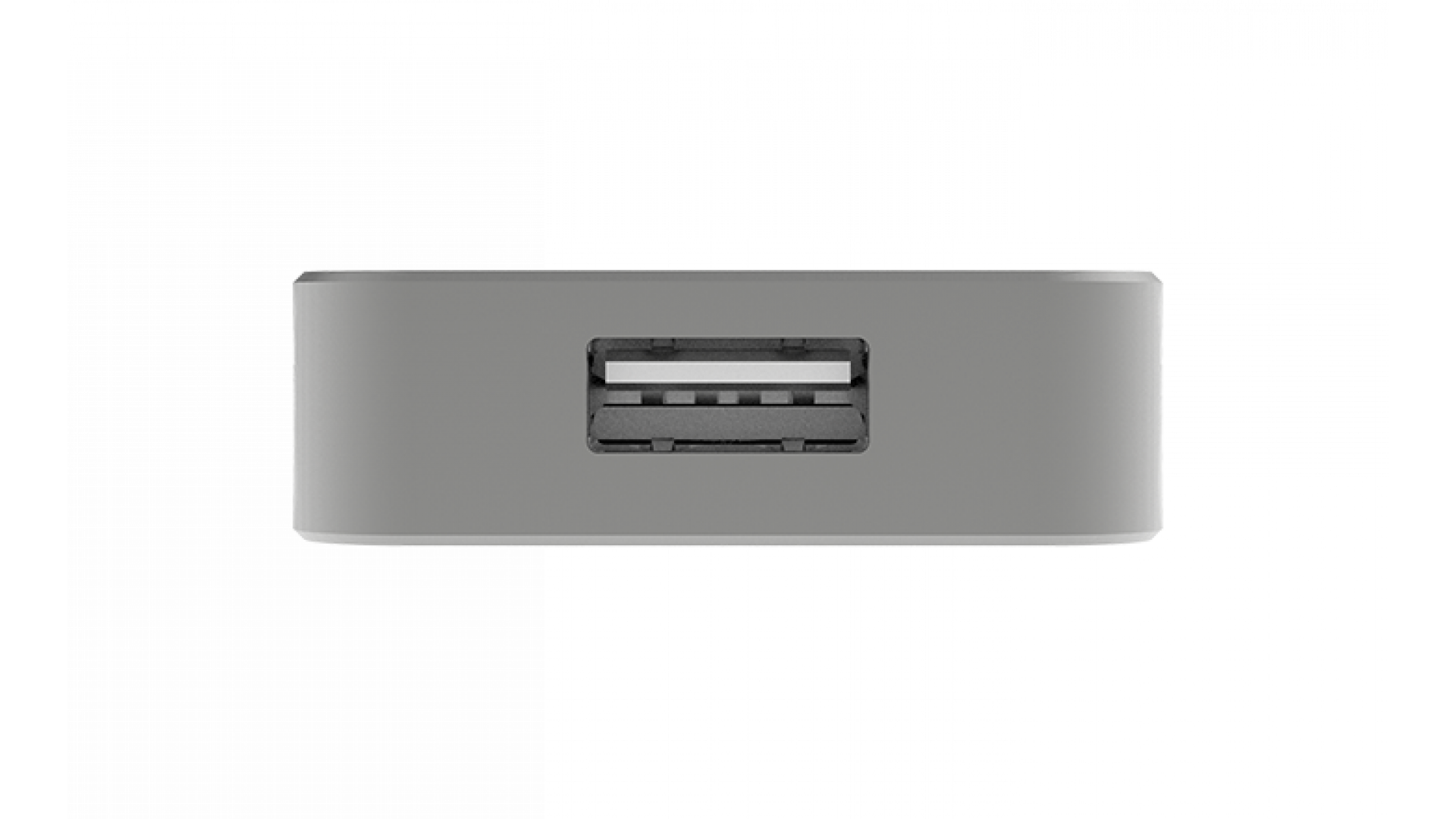

• USB 3.0 interface for high-speed data transfer
• Delivers uncompressed video and audio to the host system with ultra-low latency

Additional Features:

• Plug-and-play with no drivers required
• Compatible with Windows, Linux, and Mac OS platforms
• Compact and portable design, powered via USB
• Onboard buttons for quick configuration adjustments
• Firmware upgrades via USB for future-proofing

Included Accessories:

• USB 3.0 cable
