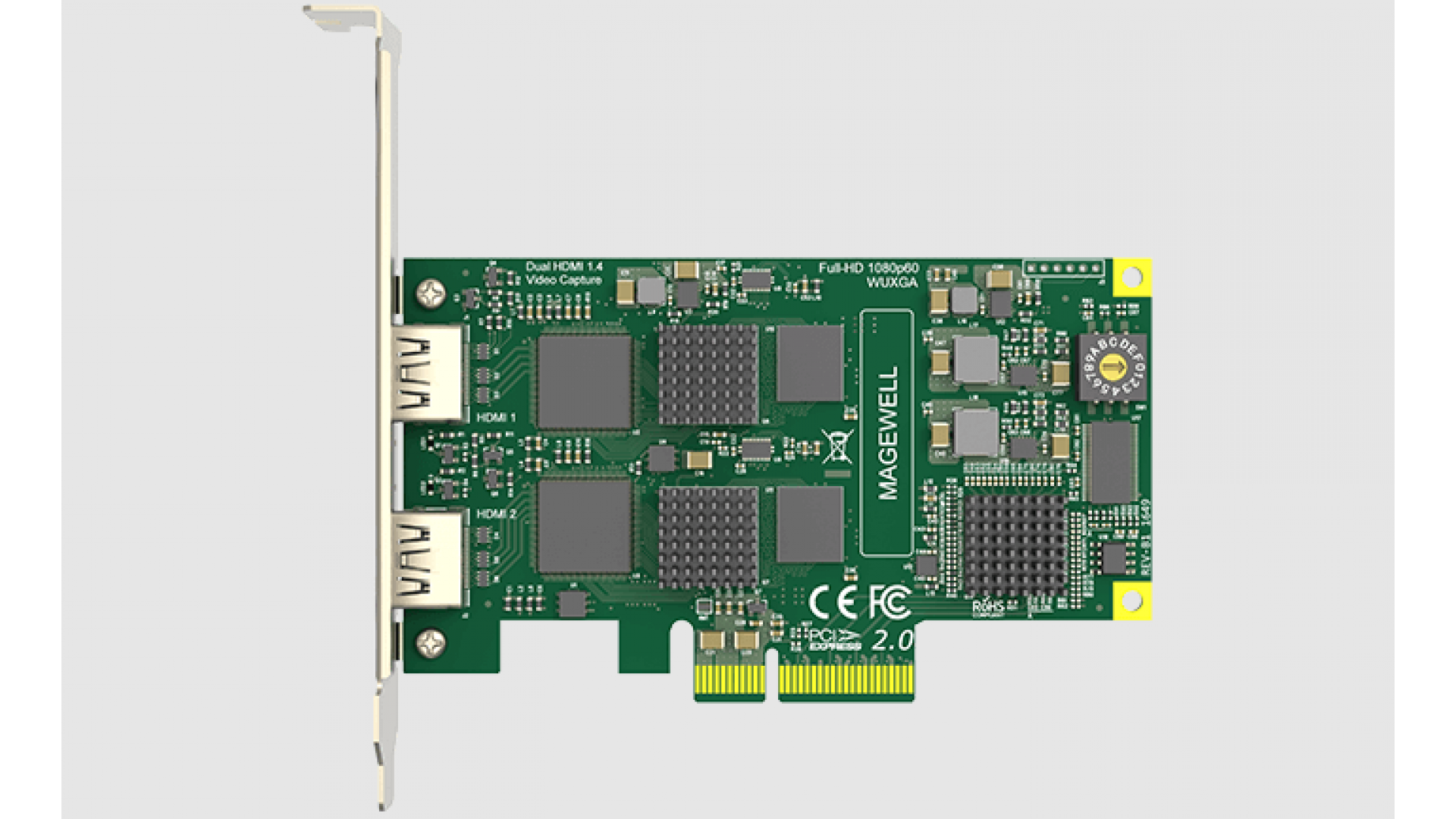

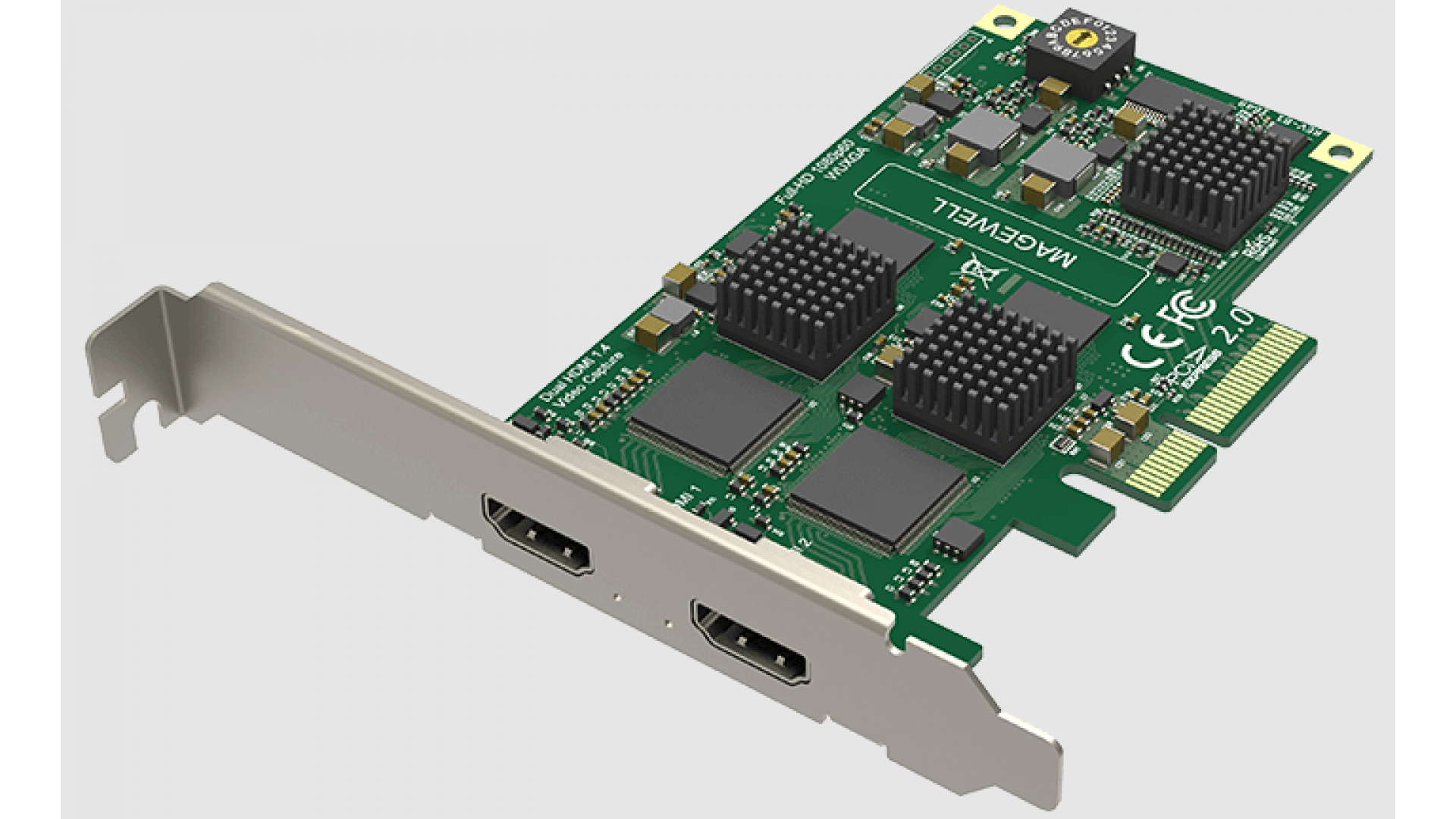

Pro Capture Dual HDMI

Key Features:

Input:

• Dual HDMI interfaces with support for up to 1920x1200 60fps input on each port
• Supports 8/10/12-bit color depth
• Embedded audio support for up to 8-channel, 48KHz, 16-bit audio on each input

Processing:

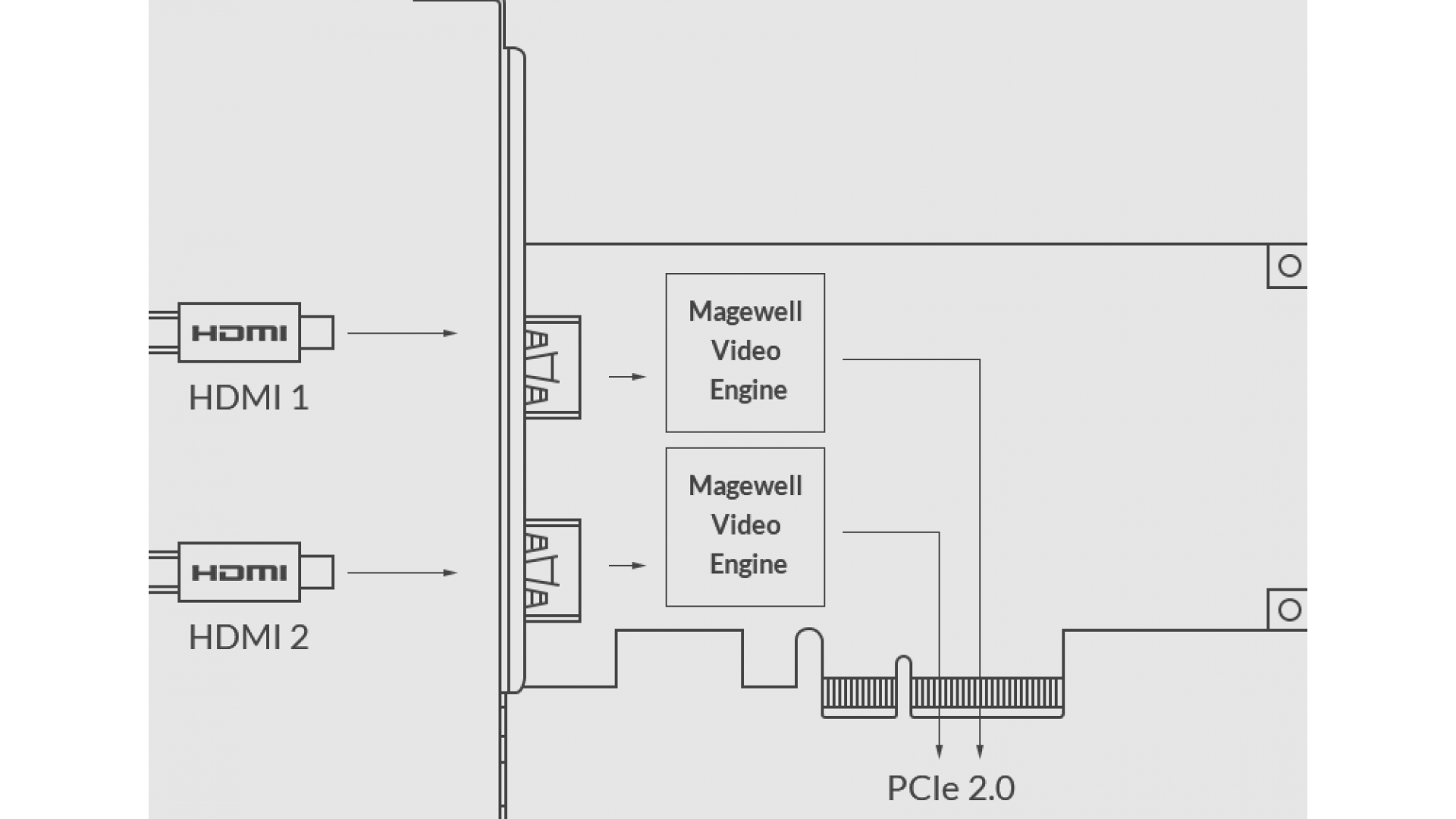

• Independent video processing for each input signal, including up/down/cross-scaling, deinterlacing, and color space conversion
• 10-bit video processing engine

Output:

• PCIe Gen2 x4 interface for high-speed data transfer
• Supports multi-channel capture with ultra-low latency

Additional Features:

• Compatible with Windows, Linux, and Mac OS platforms
• Multiple card support for larger systems
• Fan-less design for quiet operation
• Onboard dip switches for flexible configurations
• Advanced configuration and status monitoring via Web GUI

Included Accessories:

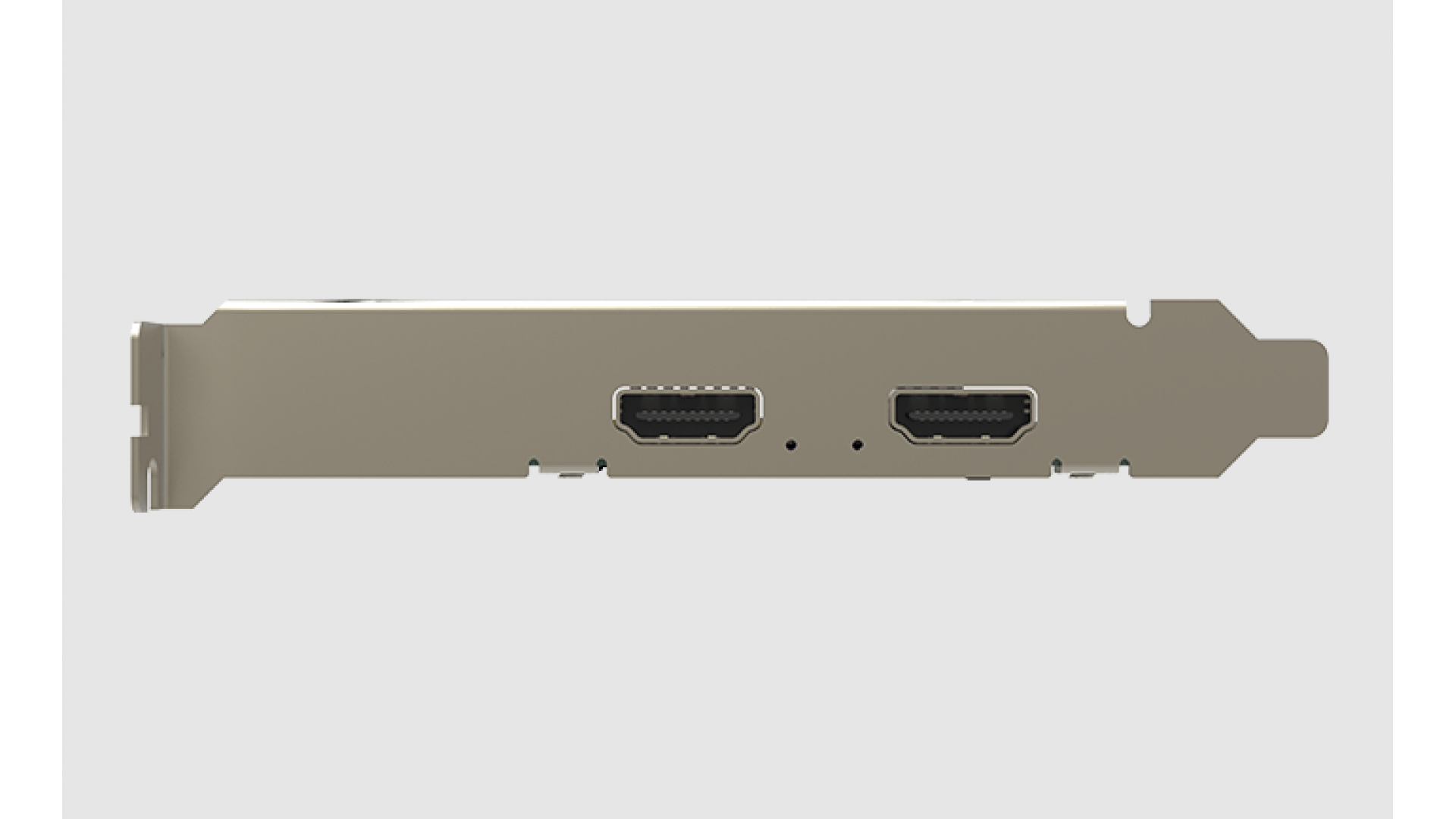

• Low-profile bracket
