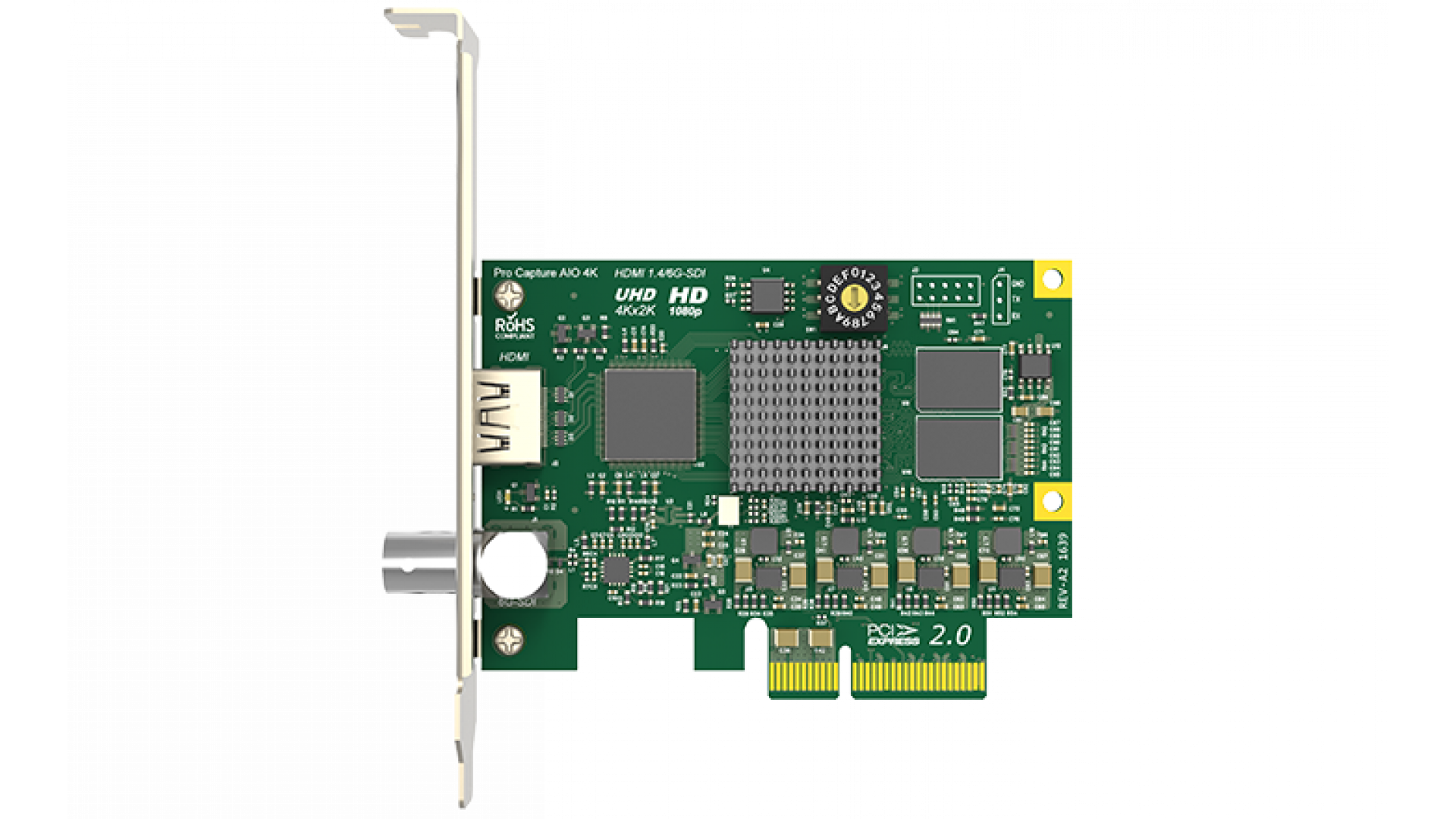

Pro Capture AIO 4K

Key Features:

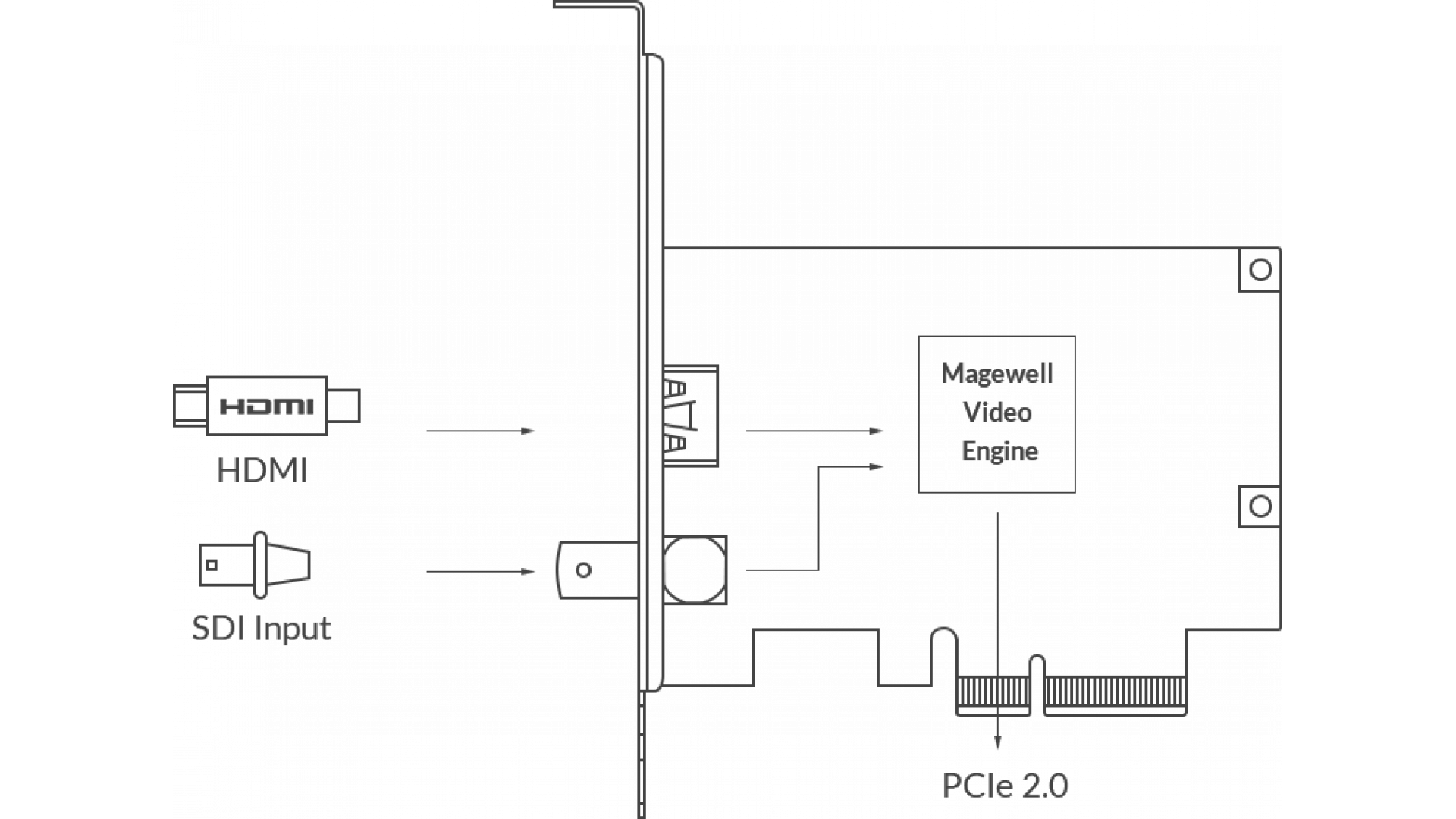

Input:

• Supports multiple input interfaces including HDMI, SDI, DVI, VGA, and Component with resolutions up to 4096x2160 30fps or 3840x2160 60fps
• Supports 3G-SDI, HD-SDI, and SD-SDI formats
• Embedded audio support for up to 8-channel, 48KHz, 16-bit audio

Processing:

• Advanced video processing including up/down/cross-scaling, deinterlacing, and color space conversion
• HDR to SDR conversion and vice versa
• 10-bit video processing engine for accurate color reproduction

Output:

• PCIe Gen2 x4 interface for high-speed data transfer
• Ultra-low latency output suitable for real-time applications

Additional Features:

• Compatible with Windows, Linux, and Mac OS platforms
• Multiple card support for larger systems
• Fan-less design ensures quiet operation
• Onboard dip switches for flexible configurations
• Advanced configuration and status monitoring via Web GUI

Included Accessories:

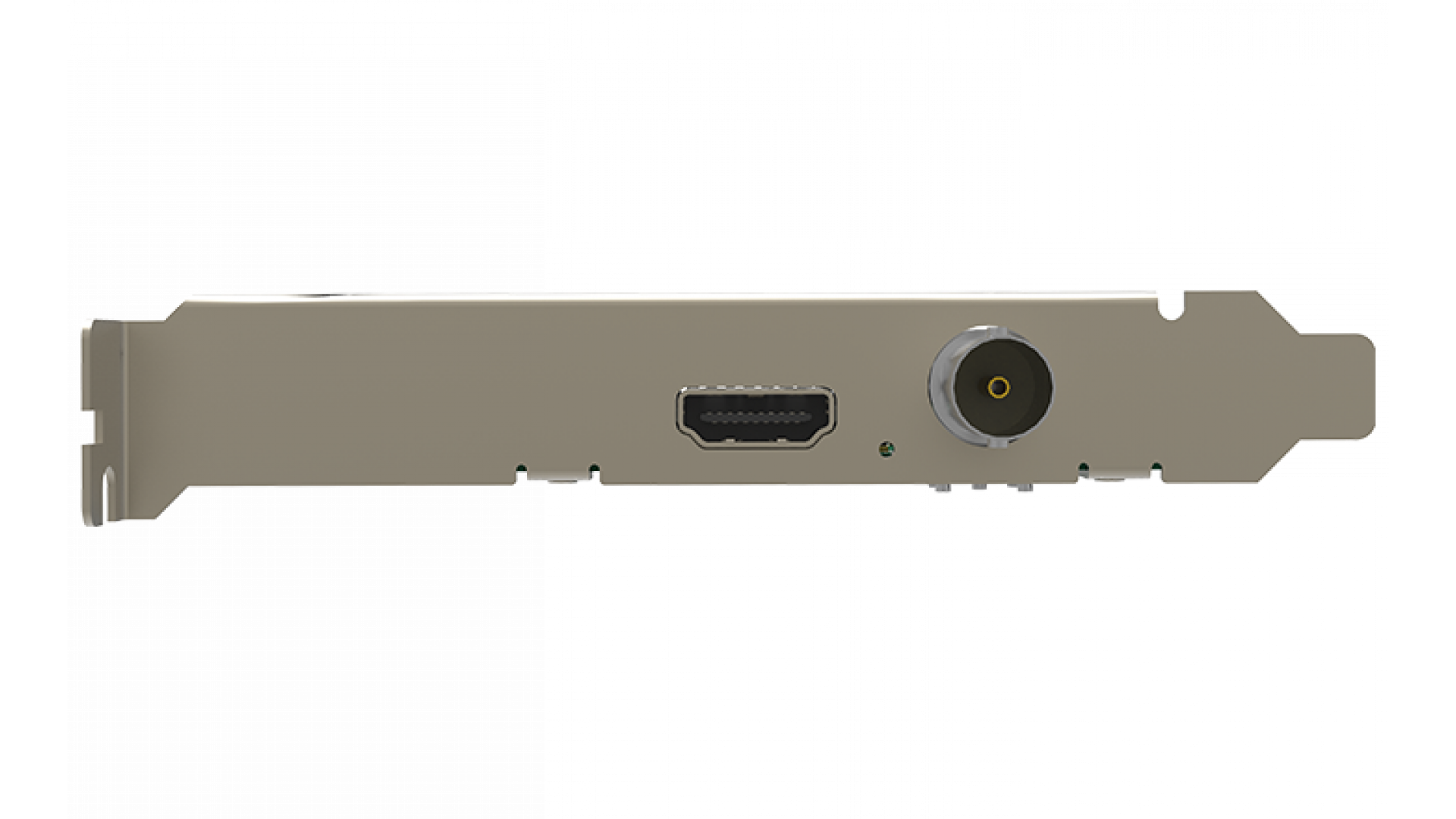

• Low-profile bracket
