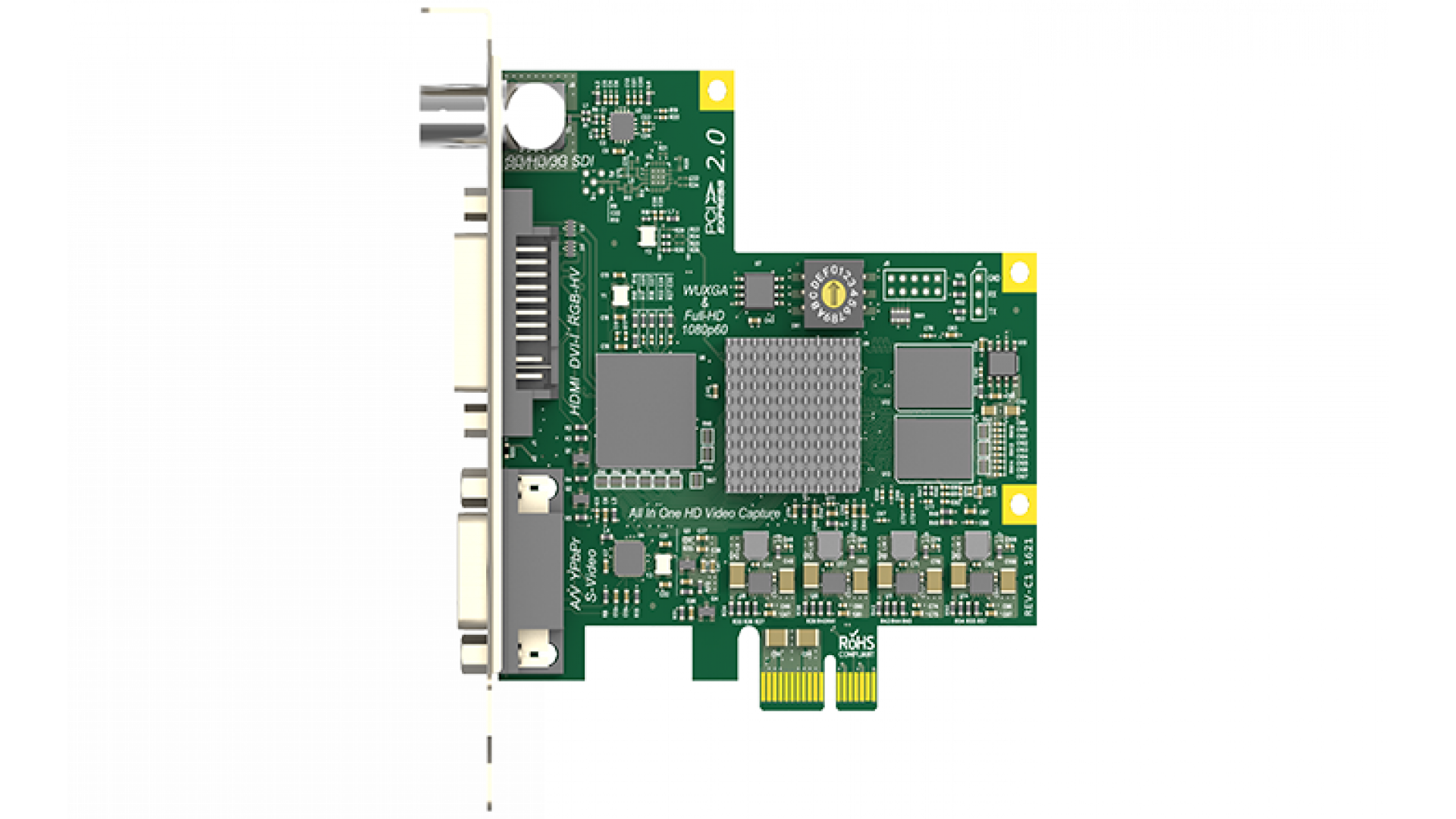

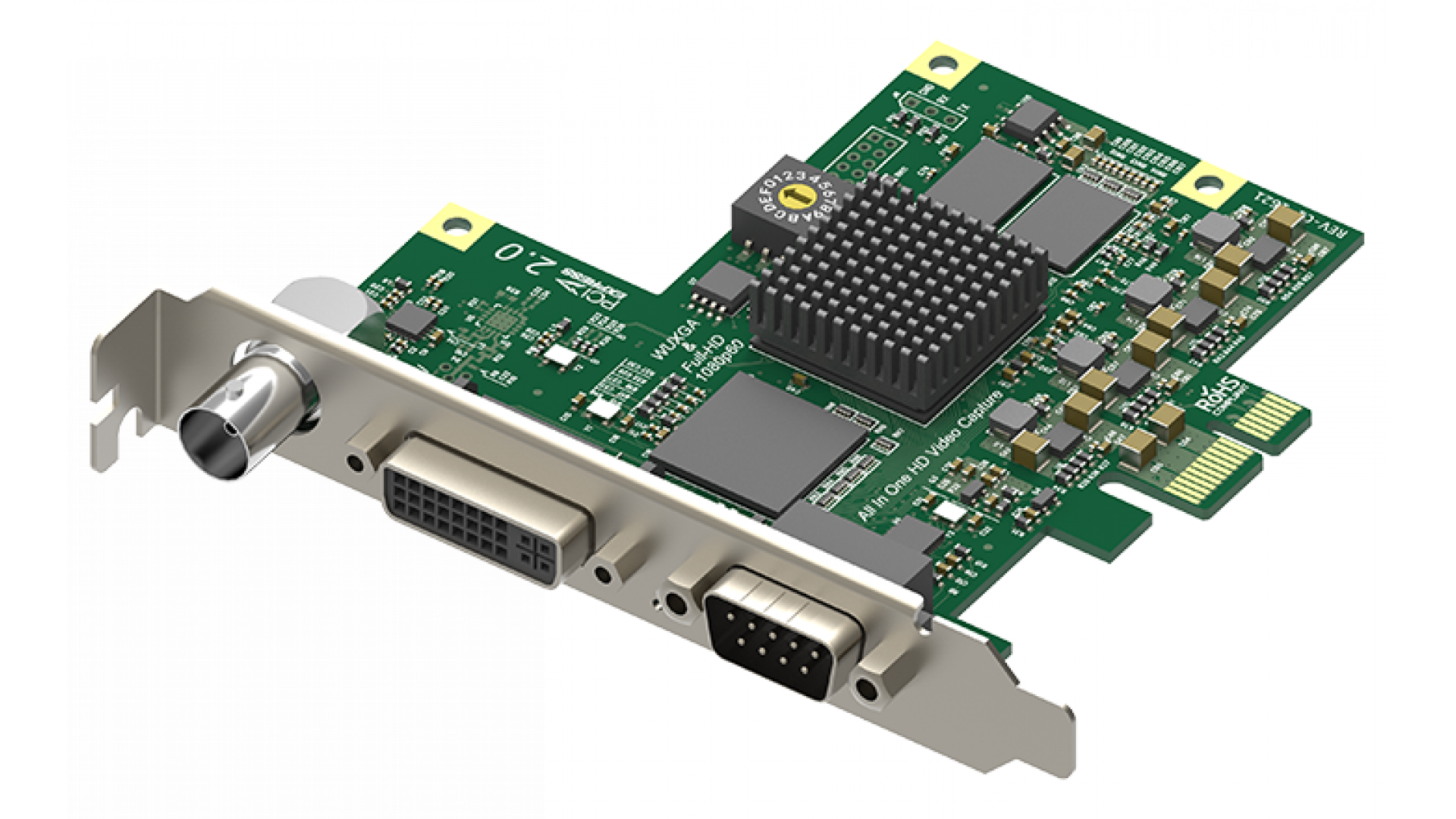

Pro Capture AIO

Key Features:

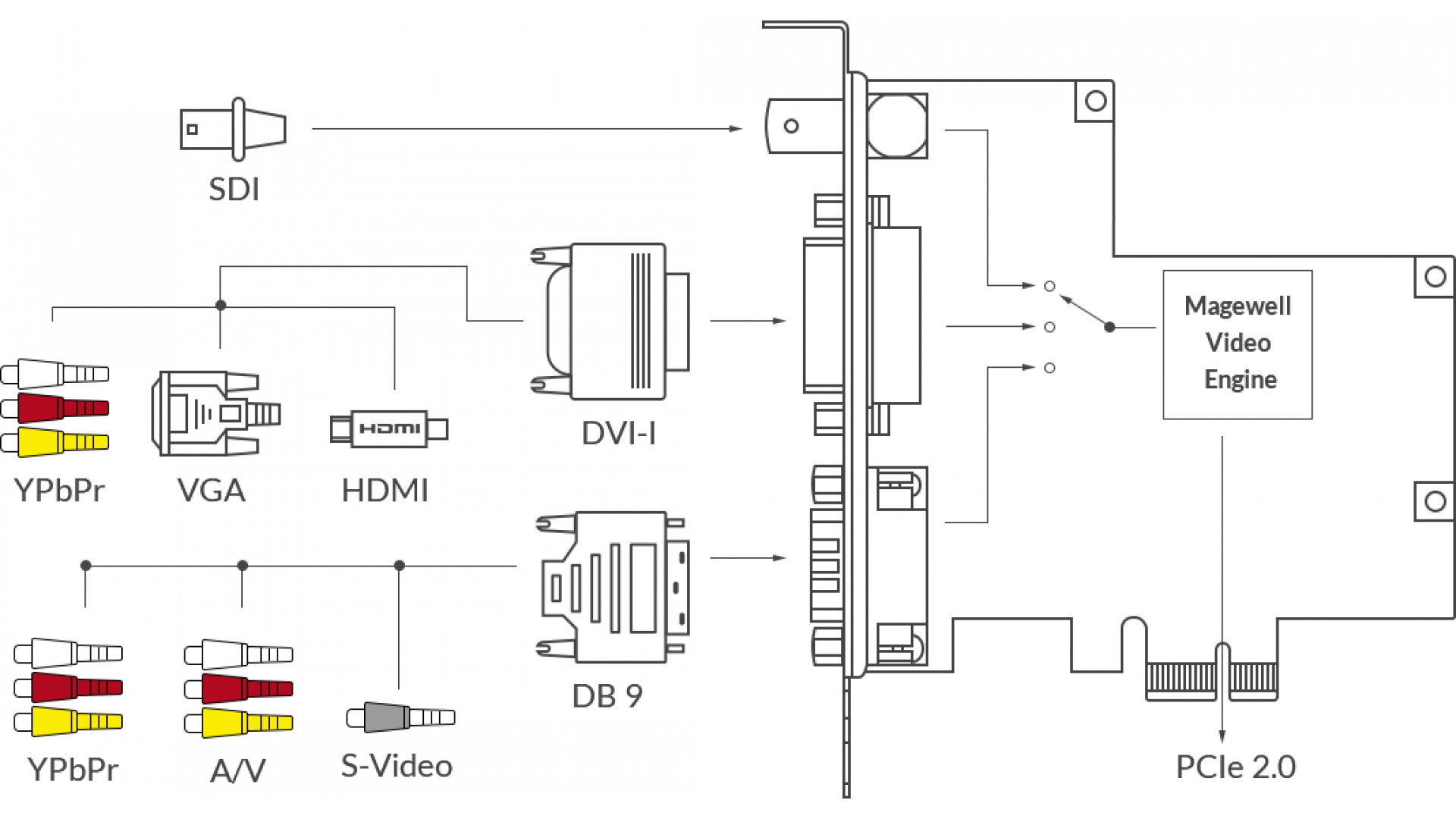

Input:

• Supports a variety of input interfaces including HDMI, DVI, VGA, SDI, and Component with resolutions up to 1920x1080 60fps
• Supports 3G-SDI, HD-SDI, and SD-SDI formats
• Embedded audio support for up to 8-channel, 48KHz, 16-bit audio

Processing:

• High-quality video processing including up/down/cross-scaling, deinterlacing, and color space conversion
• 10-bit video processing engine for accurate color reproduction

Output:

• PCIe Gen2 x4 interface for high-speed data transfer
• Ultra-low latency output suitable for real-time applications

Additional Features:

• Compatible with Windows, Linux, and Mac OS platforms
• Multiple card support for larger systems
• Fan-less design for quiet operation
• Onboard dip switches for flexible configurations
• Advanced configuration and status monitoring via Web GUI

Included Accessories:

• Low-profile bracket
